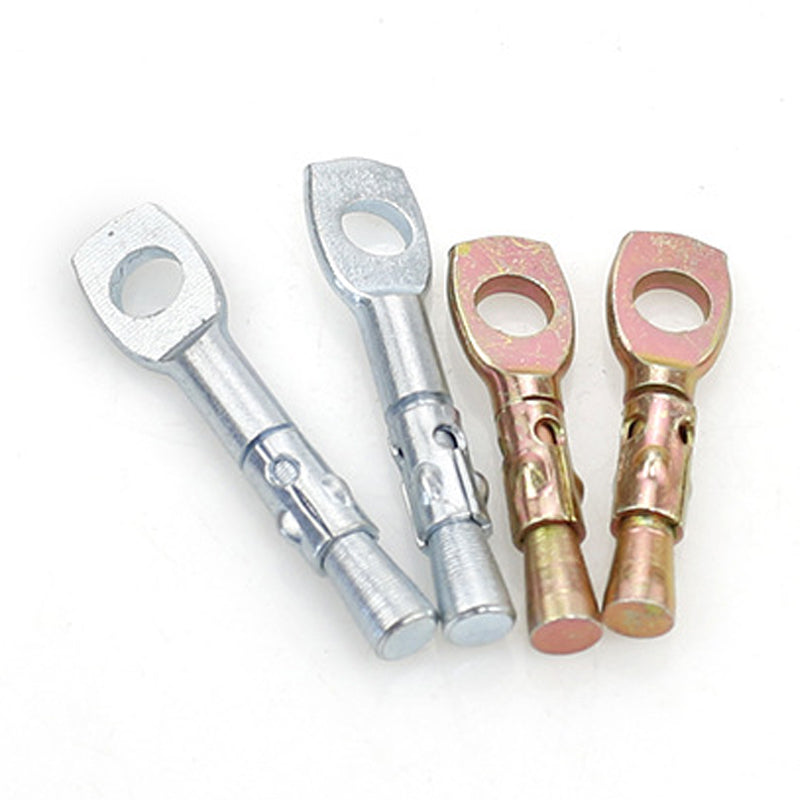

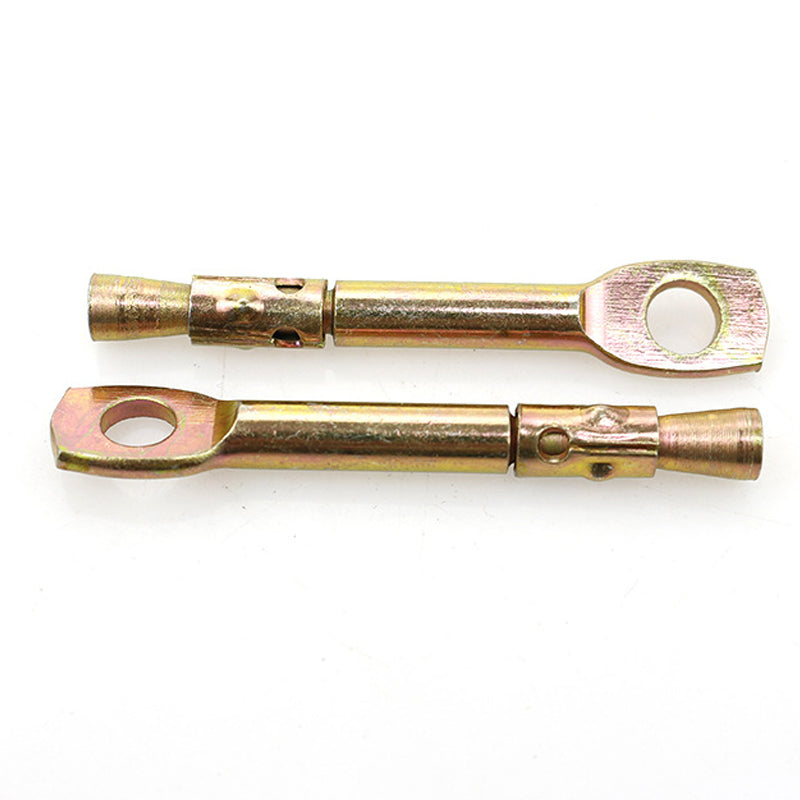

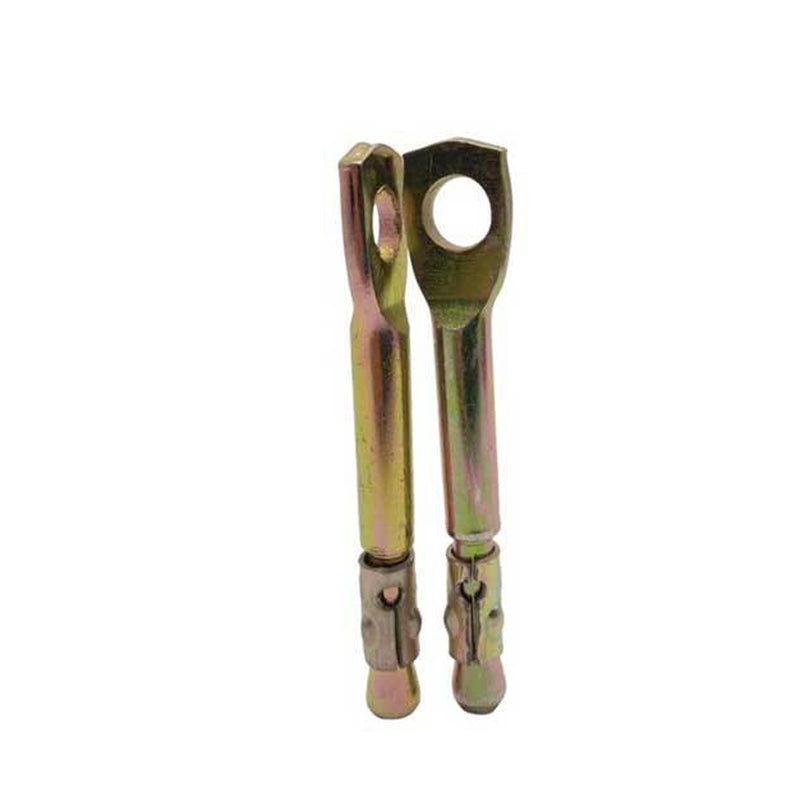

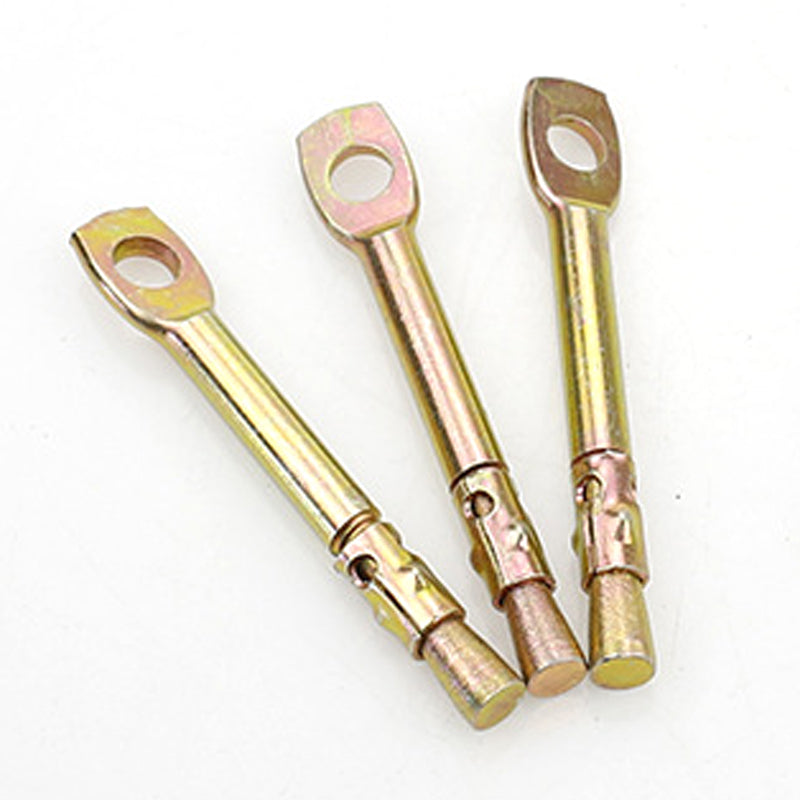

Tire Wire Wedge Anchor
Tire Wire Wedge Anchor
| Anchor Size | Anchor Length | Anchor Dia. | Eye Dia |
| M6*40 | 40 | 6 | 6.3 |
| M6*50 | 50 | 6 | 6.3 |
| M6*55 | 55 | 6 | 6.3 |
| M6*60 | 60 | 6 | 6.3 |
Features
- Through fixing
- The wire hanger is especially design for overhead applications (pipes, lightings, ducts)
- The tie down hook is for general construction uses, overhead installations, fasten mesh fence to a wall
- The basic features are the same as the regular wedge anchor
Applications
- Architectural facades
- Ornamental fixtures
- Railings
- Satellite dishes
- Signs
- Hard concrete block
- Hard natural stone
- Solid brick
- Non-cracked solid concrete

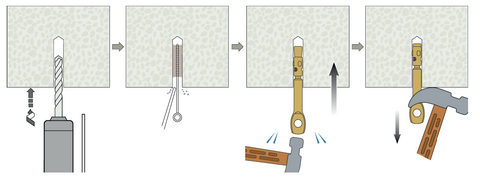

Installation
1. Drill an appropriate size hole into base material
2. Clean hole using a dust blower or compressed air.
3. Insert the anchor into the hole.
4. With a hammer or light mass, push down the anchor until the top of the threaded part .
5. With the prongs of the hammer, lift the anchor to activate the locking mechanism.
6. Pass the metal wire through the eyelet and fix it to the object.
