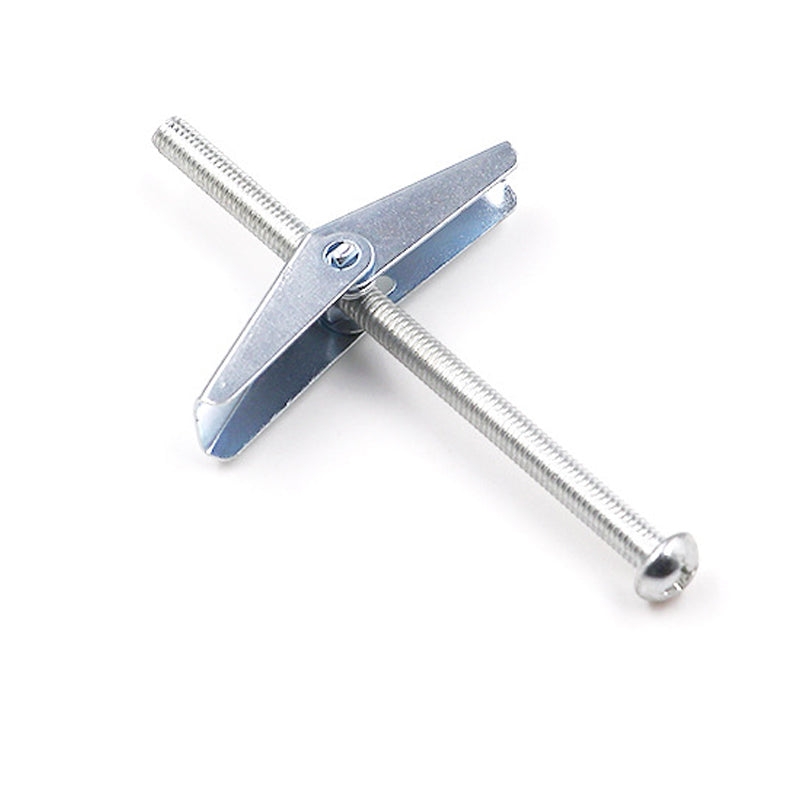

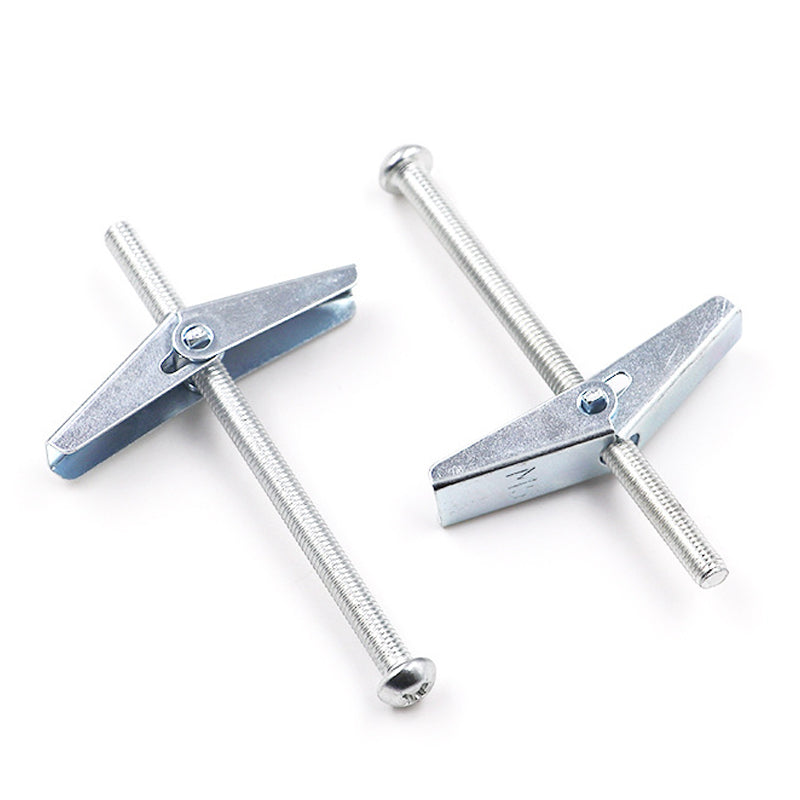

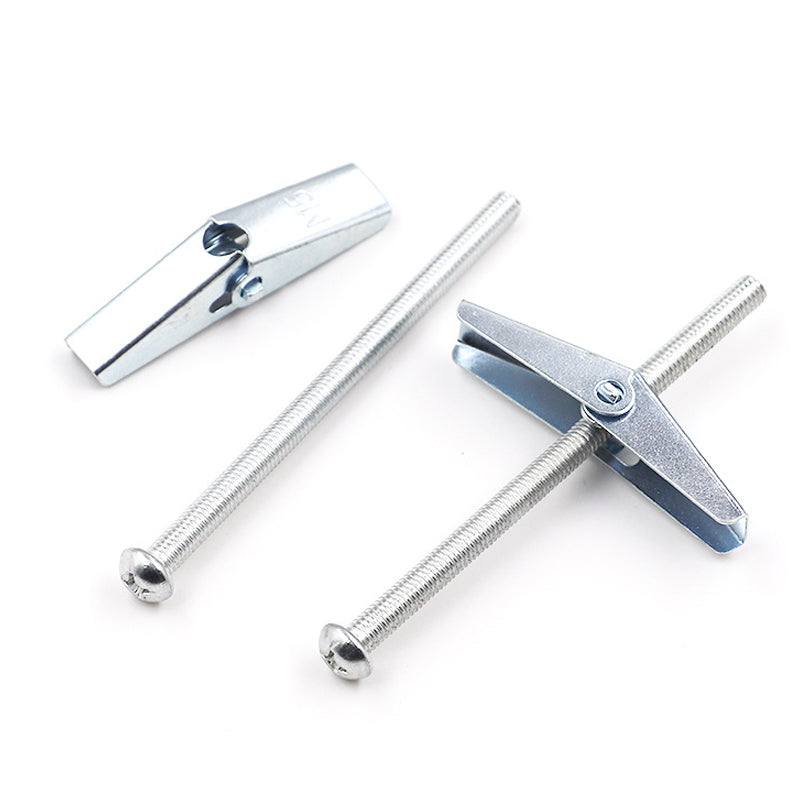

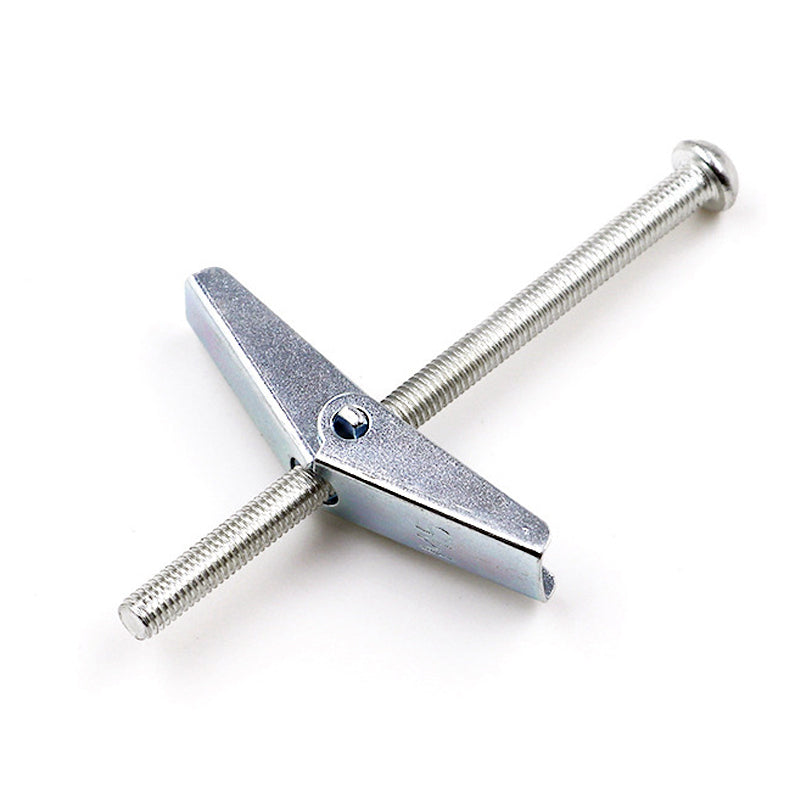

Spring Toggle Anchor
Spring Toggle Anchor
Size | M3, M4,M5, M6, M8, M10, M12 |
Screw length | 40mm-300mm |
Material | Carbon steel & Stainless steel |
Finished | Zinc plated, plain |
Advantage
suitable for use in most cavity situations such as plasterboard, hollow blocks, hollow concrete planks and hollow clat pots
Installation
1. Drill an appropriate size hole into the base material
2. Insert the Spring Toggle through the object you need to affix.
3. Fold the wings and insert them into the drilled hole.
4. Screw clockwise until there is a strong resistance.
