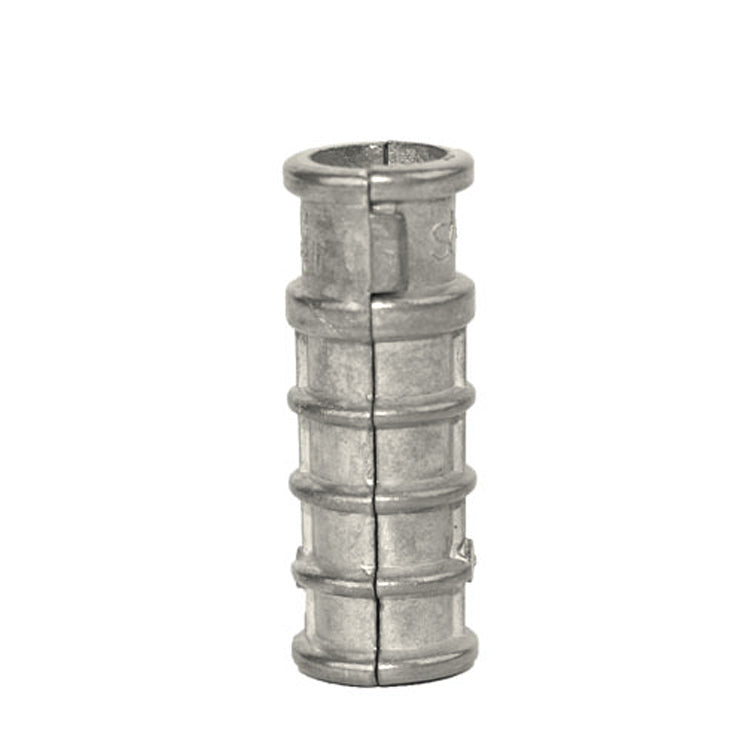

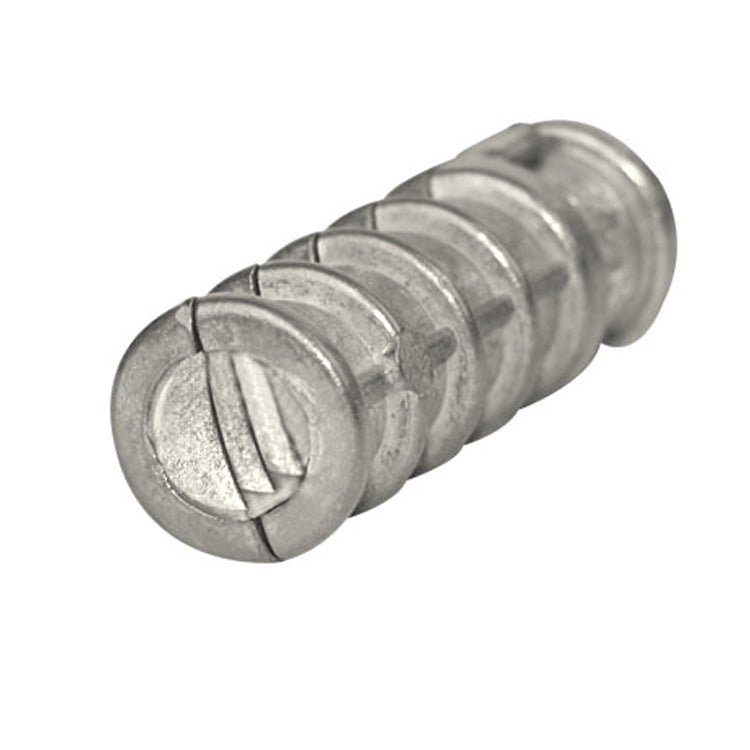

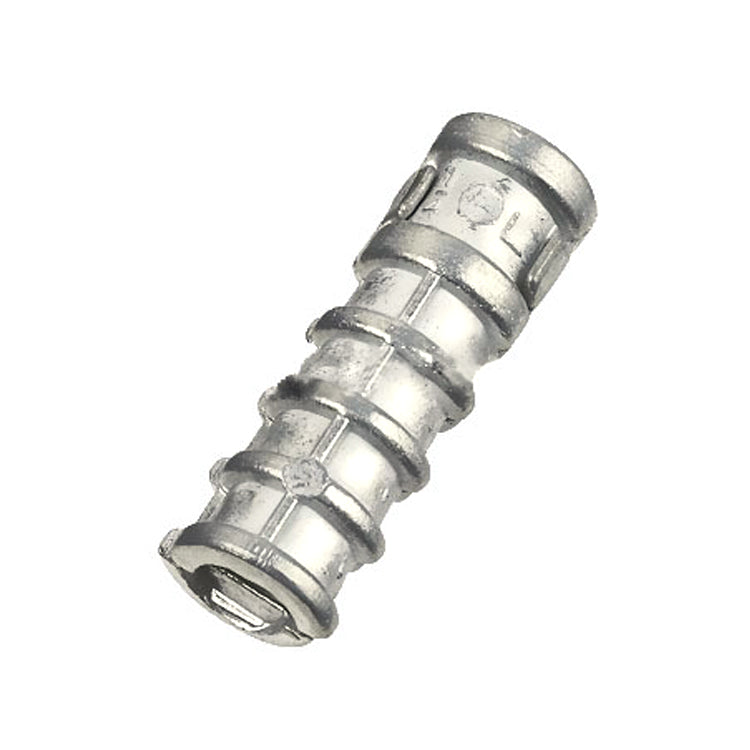

Lag Shield Anchor
Lag Shield Anchor
Material : Zinc alloy
Finish: Natural color

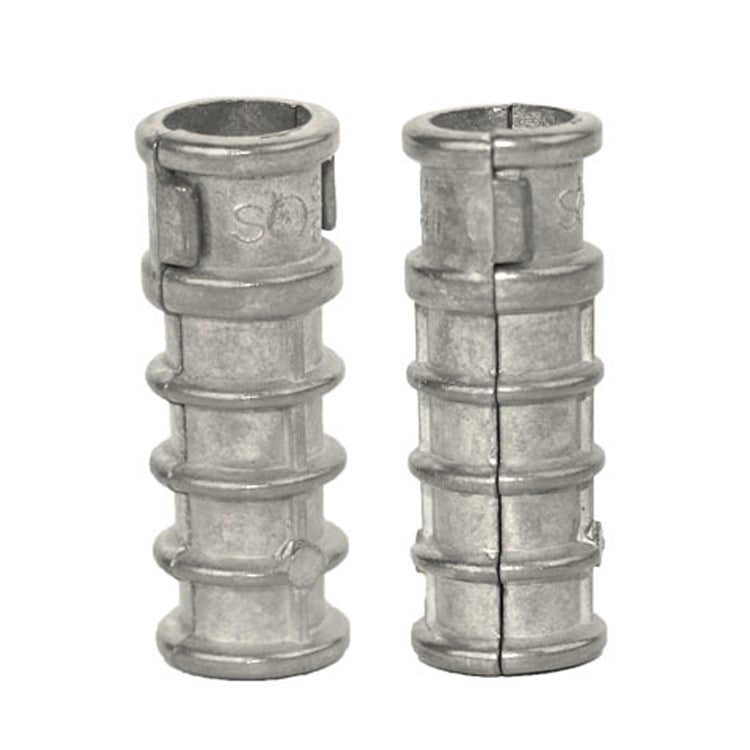

Type: Short type(for hard substrate), Long type(soft substrate)
| Anchor Size | Embedment | Drill Dia |
| 1/4" | 1-1/2" | 1/2" |
| 5/16" | 1-3/4" | 1/2" |
| 3/8" | 2-1/2" | 5/8" |
| 1/2" | 3" | 3/4" |
| 5/8" | 3-1/2" | 7/8" |
| 3/4" | 3-1/2" | 1" |
Advantage
- Suitable for light medium duty loading purpose
- Rust prevention, corrosion resistant and environmental protection
- The short type is suitale for hard masonry substrate, the long type is for soft substrate.
- Used together with lag screw to expand and fix the objects, no precise drilling depth is required.
- Quick and easy to install.
Applications
- Awnings
- Clotheslines
- Ornamental fixtures
- Railings
- Signs

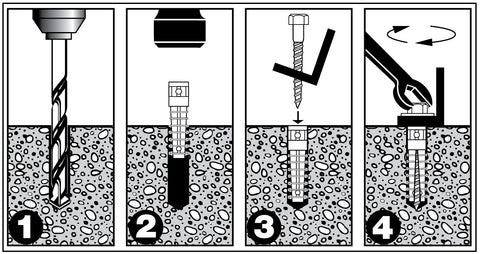

Installation
- Drill an appropriate size hole into the installation surface.
- Insert Lag Shield into the hole.
- Insert the screw through the object you need to afix and insert them into the Lag Shield.
- Using a wrench, turn clockwise there is a firm resistance.
