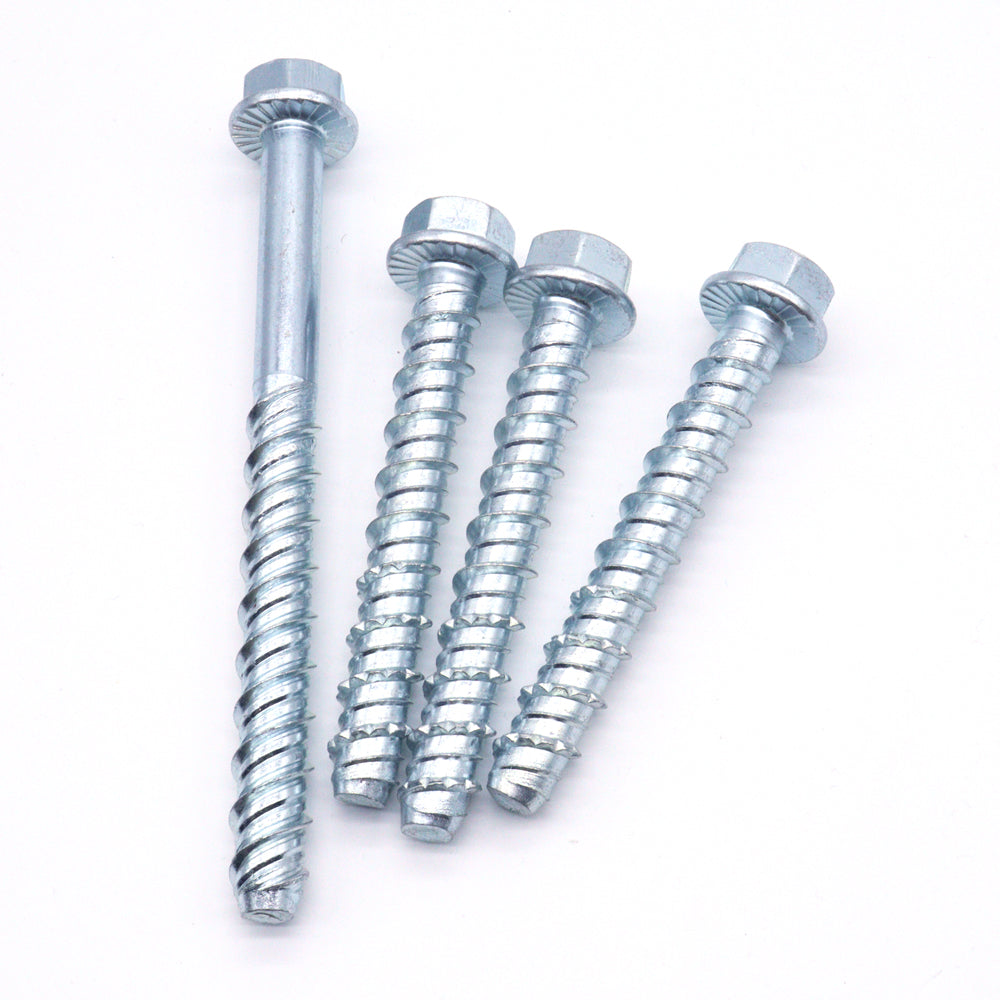

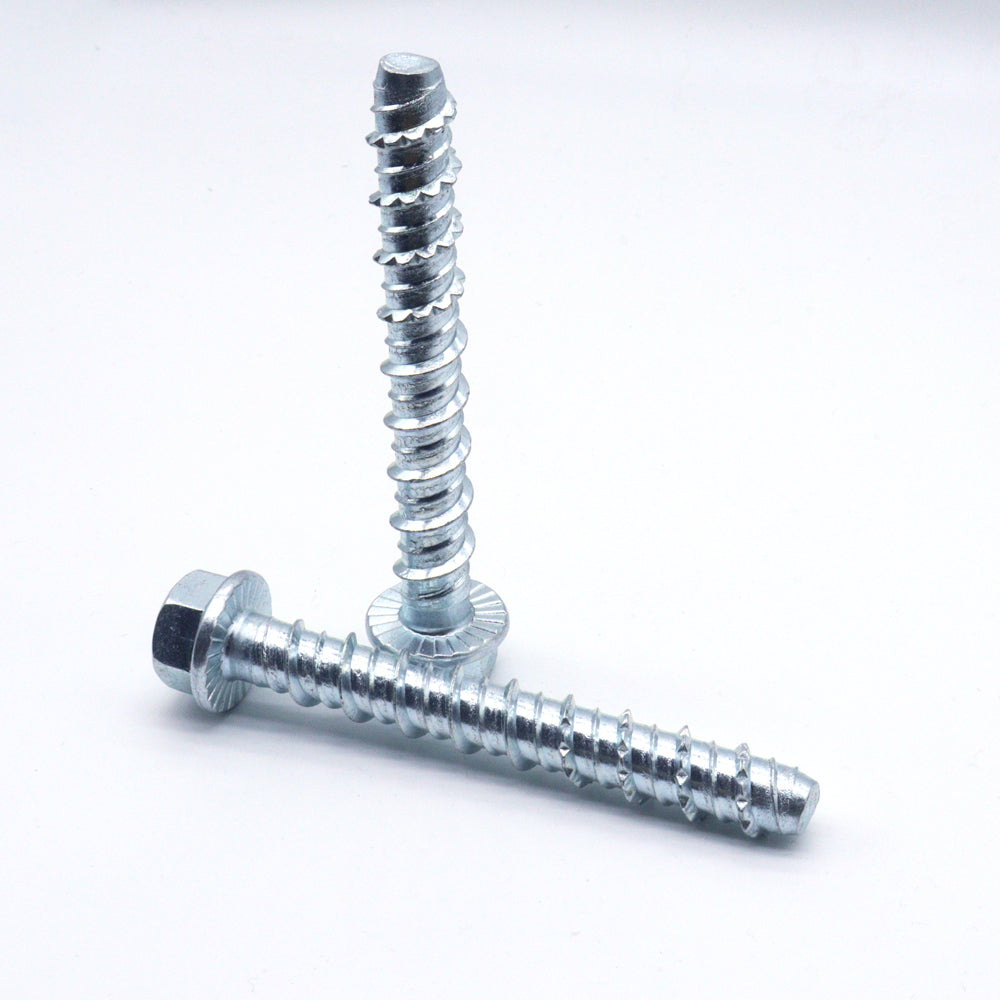

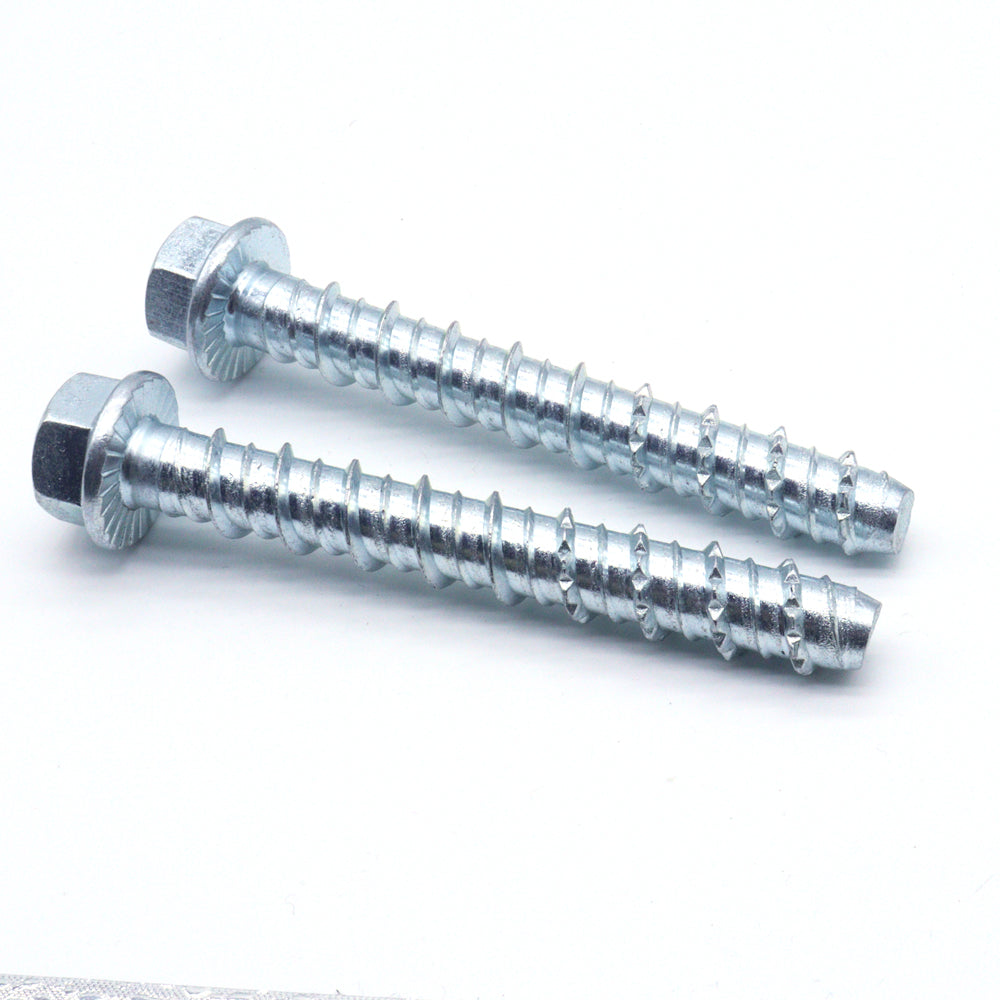

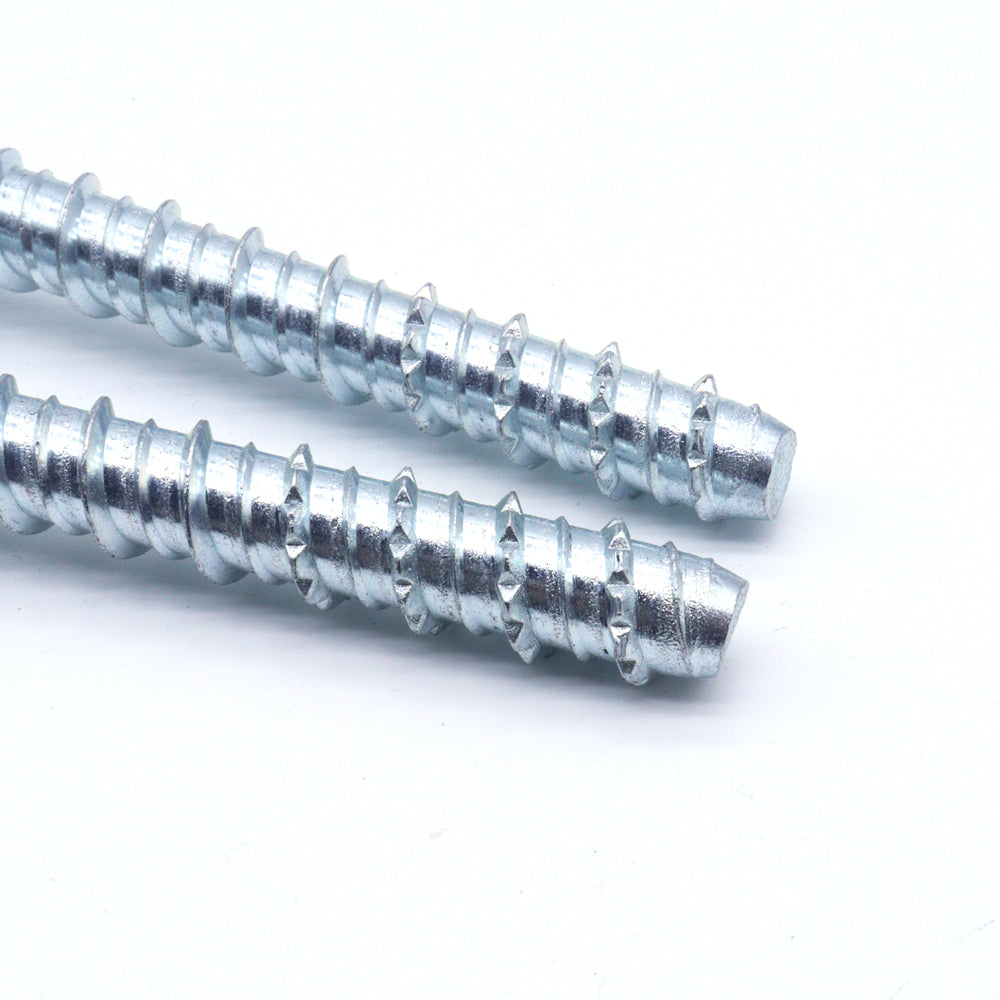

Hex Flanged Head Concrete Screw

Advantage

• Heat treatment provides surface and core hardness
• No nuts and washers to assemble prior to installation
• Serrated head facilitates a positive lock between bolt and application surface for enhanced
• Easier and faster installation than mechanical expansion anchors
• Corrosion resistant.
• Special body design with cavities to collect the debris

Application

• Bleachers
• Heat pumps
• Machinery
• Racking
• Thermo pumps
• Formwork

Installation

1. Drill a hole into the base material ,deeper than installation anchor depth
2. Clean hole using a dust blower or compressed air.
3. Insert the anchor through the fixture into the anchor hole. Tighten the anchor by rotating clockwise and applying pressure towards the base material.
4. Continue tightening the anchor until the head is firmly seated against the fixture.
