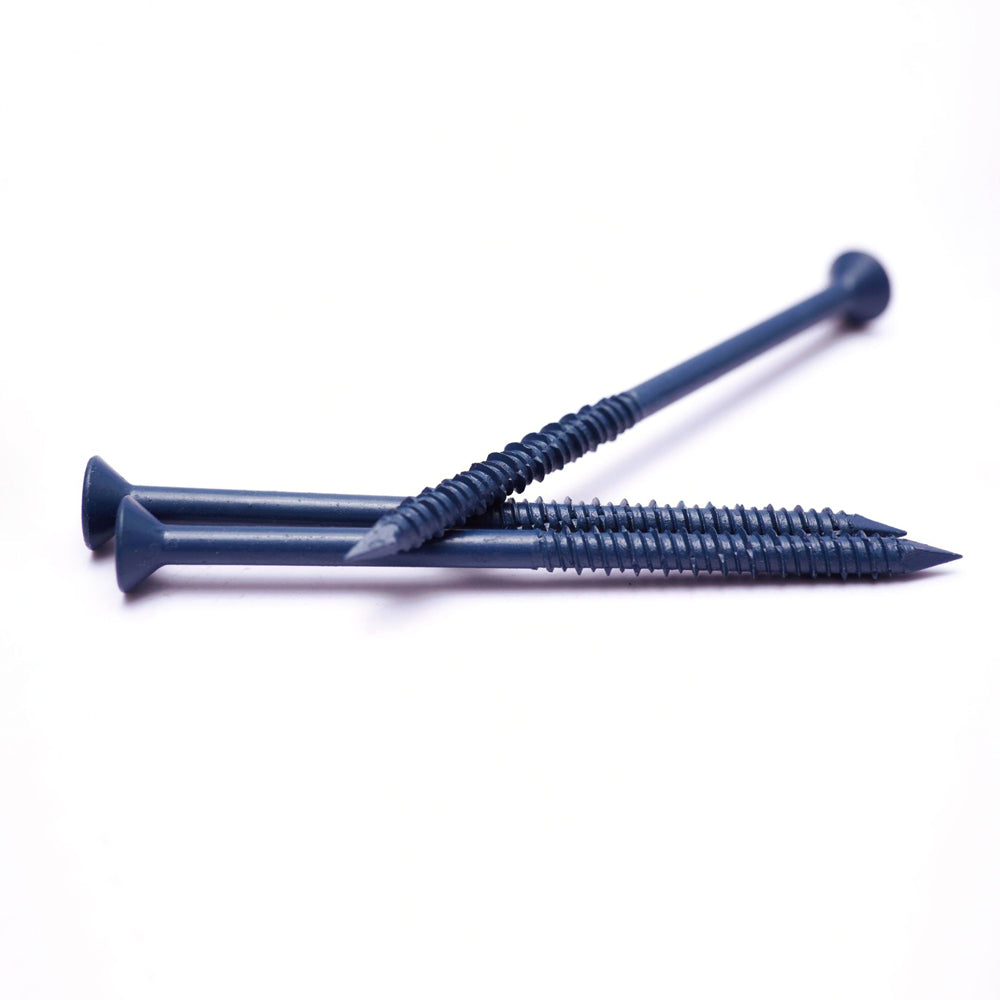

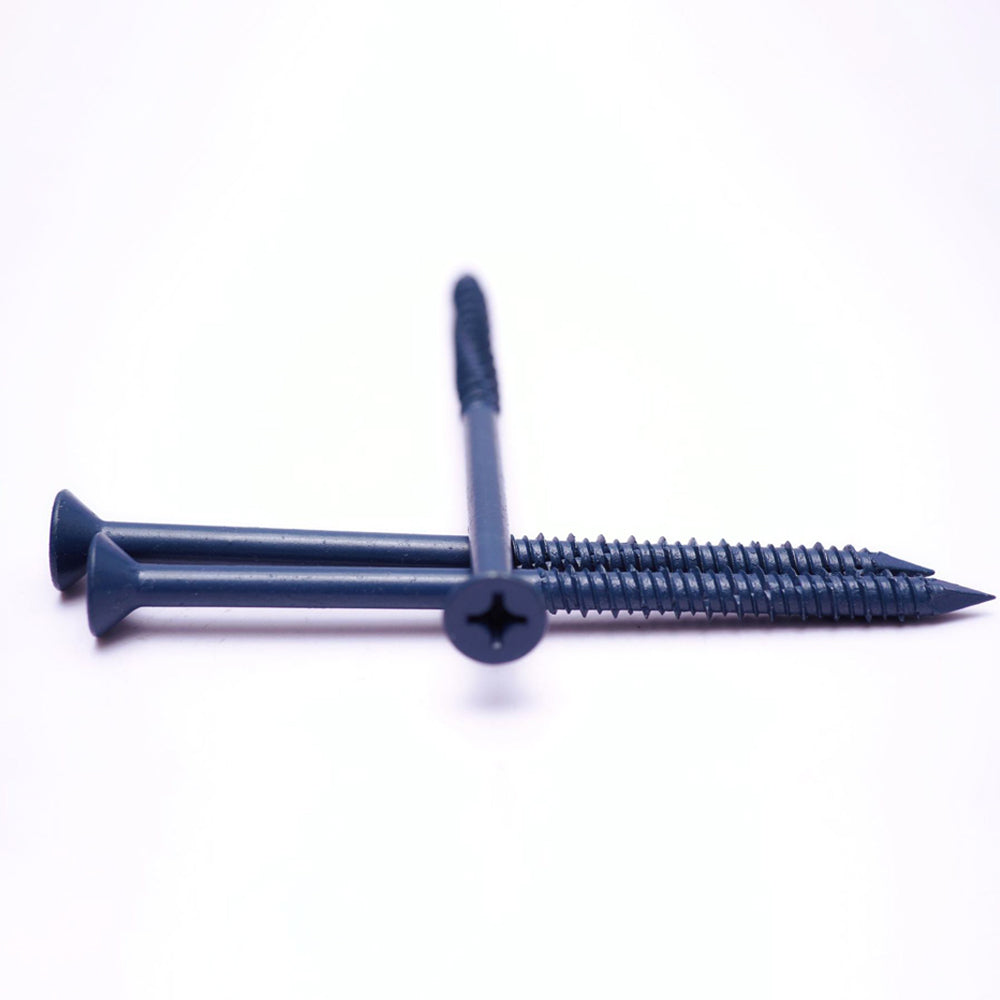

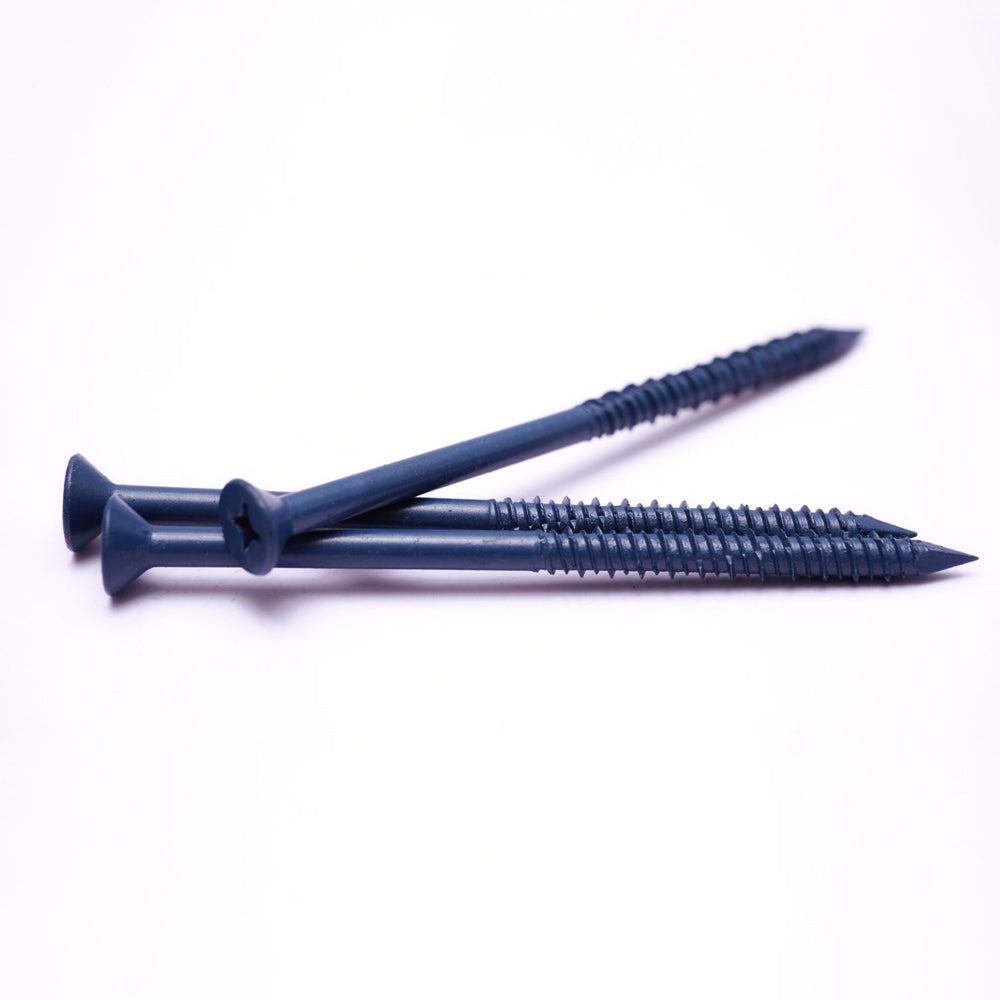

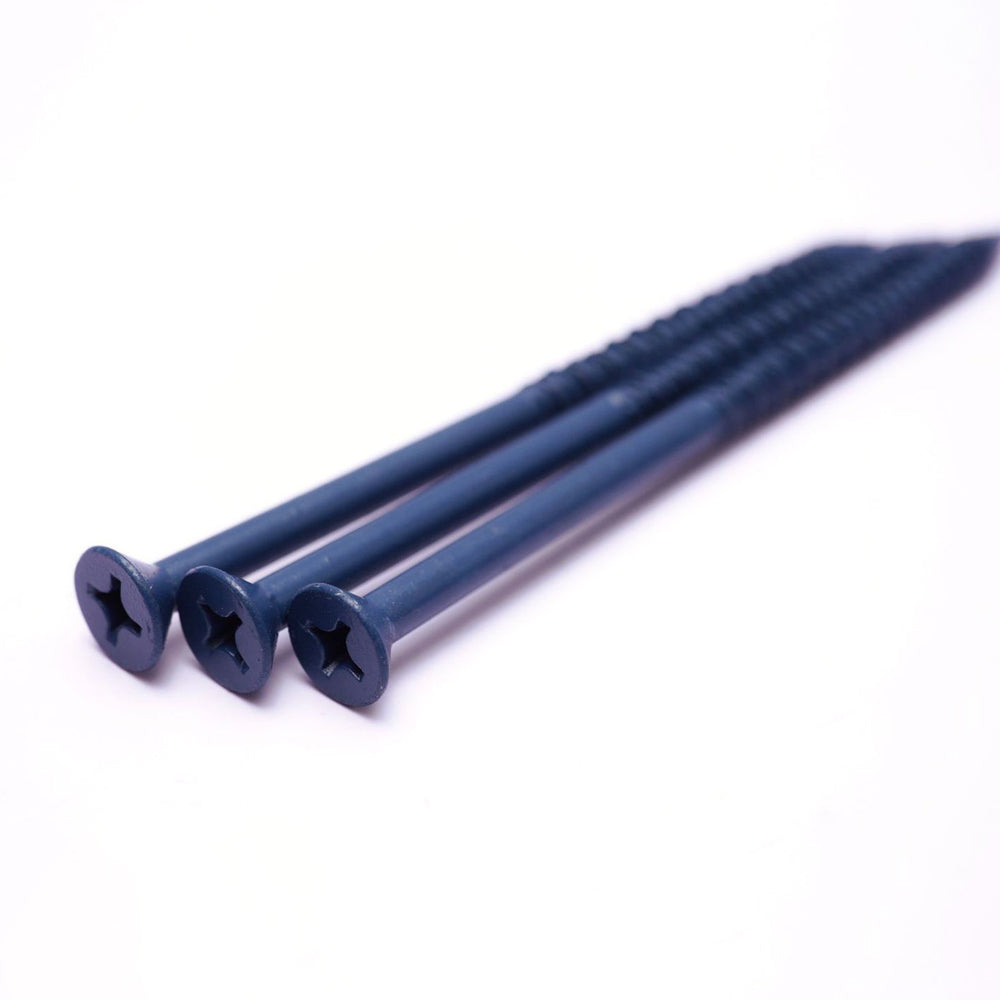

Flat Head Concrete Screw
Flat Head Concrete Screw
| Size | 3/16", 1/4" |
| Head Type | Slotted hex washer head, Phillips flat head |
| Material | Carbon steel 1022A |
| Finished | Blue coating/Silver coating 1000+ hours of salt spray resistance |
Advantage
- Fast and easy installation.
- Triple ‘combo’ hex head, Ind. HWH/Slotted/Phillips.
- Double ‘combo’ flat head, Square/Phillips recesses.
- Can be installed close to an edge.
- No hole spotting or inserts required.
- Diamond point for effortless centering and guide into pre-drilled holes.
- Reversible and removable.
- High-strength quality steel—exceptional tensile and shear values.
- Superior holding power—outstanding pull-out values.
- Maximum corrosion resistance
Application
- Window & door frames
- Metal shelf-uprights
- Backer boards
- Kitchen cabinets
- Mounting brackets
- Control panels & junction boxes
- Exterior insulation systems
- Sill Plates
- Conduit clips & cable clamps
- HVAC strapping
- Brick ties
- Wood headers, studs & furrings

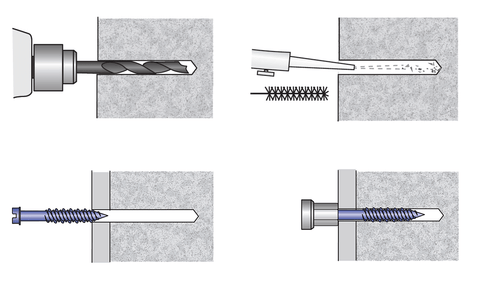

Installation
- Use the correct size masonry drill bit and drill the hole at least 1/4" deeper than the calculated embedment depth.
- Clean the hole using a nylon brush and compressed air.
- Place the anchor point through the fixture into the hole.
- Drive the anchor in a single continuous motion until the anchor is set firmly against the fixture.
