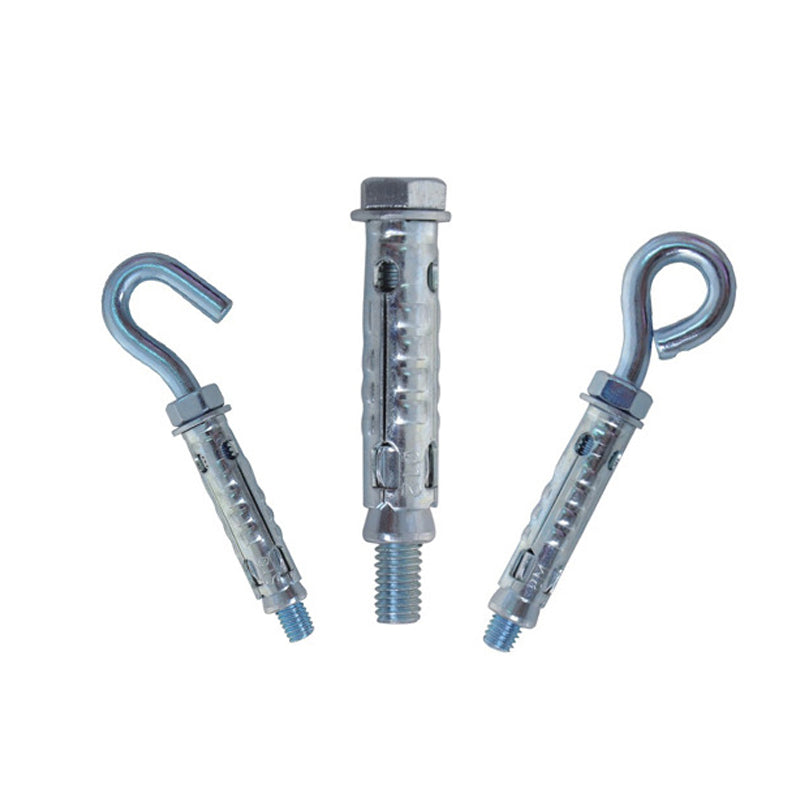

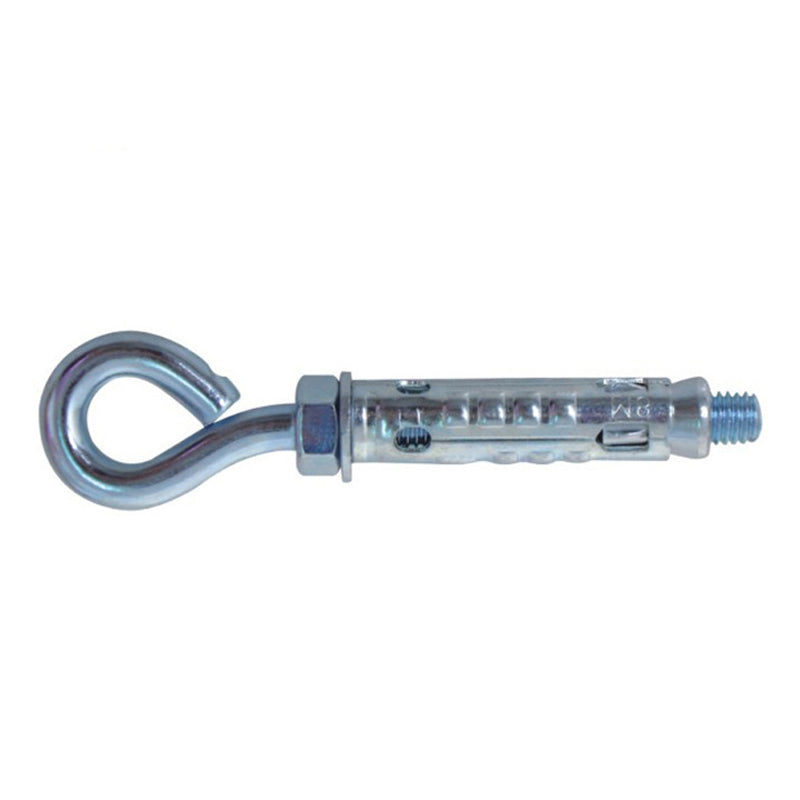

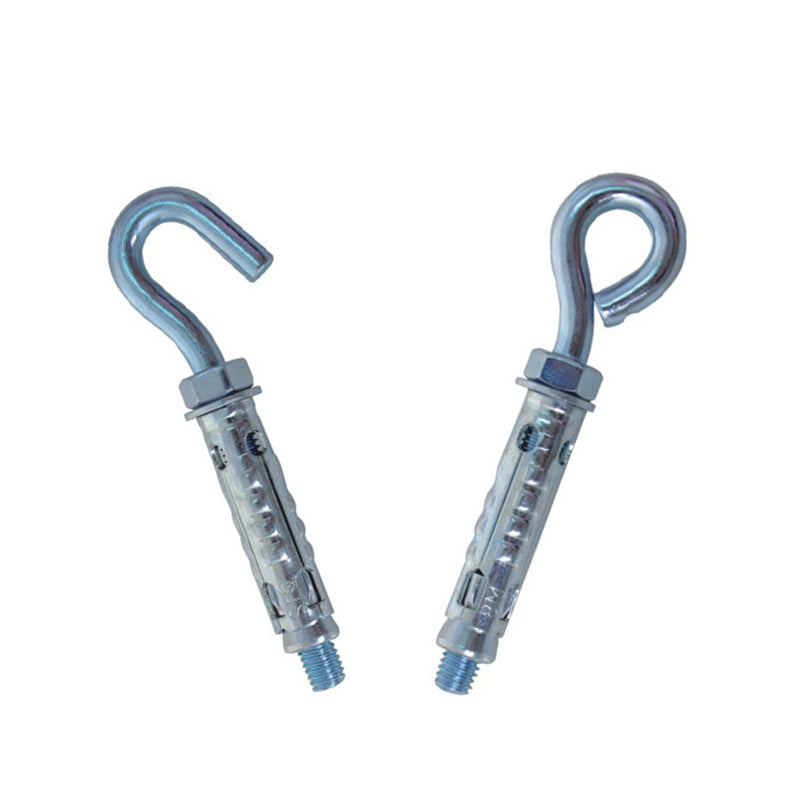

Eye Bolt Tam Shield Anchor
Eye Bolt Tam Shield Anchor
| Anchor size | Anchor Length | Drill Dia | Normal Hook Bolt Size |
| M6 | 45 | 10 | M6*50 |
| M8 | 50 | 12 | M8*55 |
| M10 | 60 | 15 | M10*65 |
| M12 | 75 | 18 | M12*80 |
- Material: SS 316, SS 304, Carbon Steel
- Finish:Plain, Zinc Plated

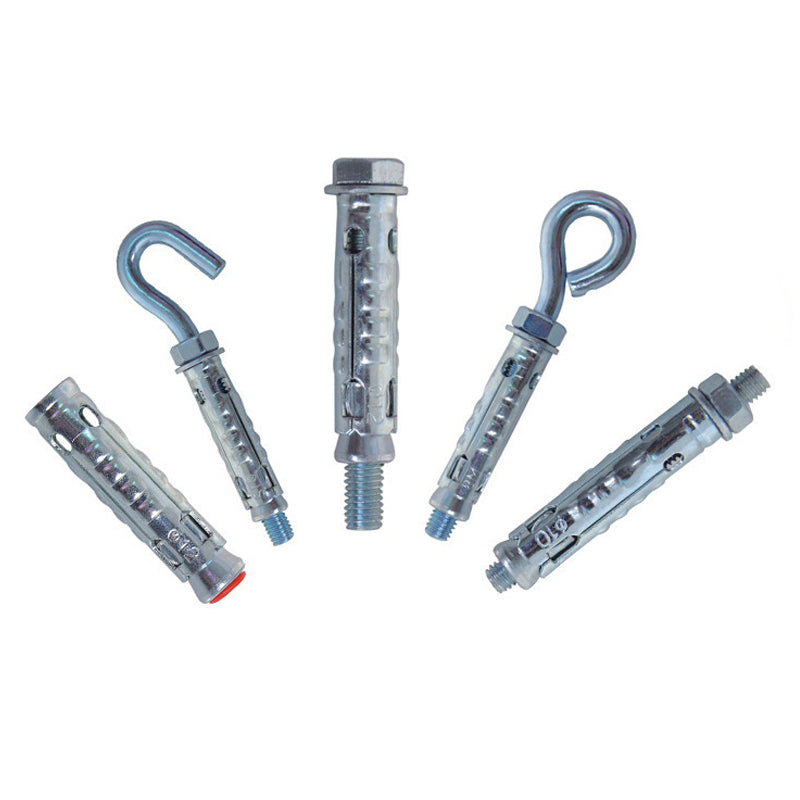

- Being available to assemble loose bolt, stud, eye bolt and hook bolt
Base Material
- concrete
- Masonary Brickwork
- Solid wall
- Stone
Advantage
- Easily to complete with loose bolt, stud, eye bolt and hook bolt when installing
- Suitable for medium-heavy duty loading purpose.
- Retaining power can be removed easily to pull down the cone nut.
- Design double anti-rotation fins to prevent rotation in hole wall.
- Scales shape on surface to increase friction in the pre-drilled hole during installation
- A red plastic plug inserted for dust-proof
- Quick and easy to install and use
Applications
▲Railings, special door industry, wall panels.
▲ Installation of spacer signs, handrails, railings, shelves, and gates.
▲ Installation of console grilles and fences and installation of heavy machinery.
▲Pipeline installation engineering/pipe support.
▲ Cables and towers.
▲Installation of railing starter rods for structural expansion and rectification projects.
▲Structural expansion and rectification project.
▲ Curtain wall, cladding and precast concrete components.
Installations
- Drill a hole in the base material to ensure the correct diameter and embedment depth.
- Use a nylon brush or high pressure air pump to remove all debris and dust.
- Insert tam shield anchor into the drilled hole until being flush with the surface.
- Pass a fastener through a guide hole in the fixture and vertically aligned with and close to a substrate hole.
- To tighten by tool until be fixed fully.
